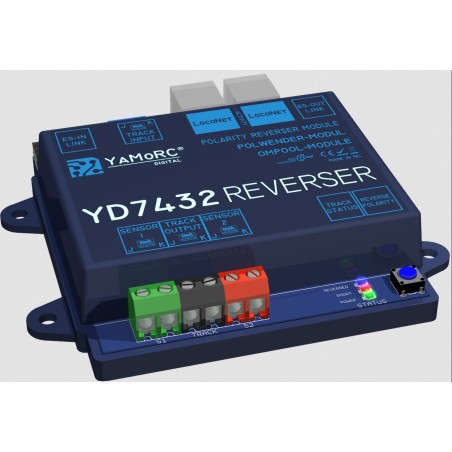

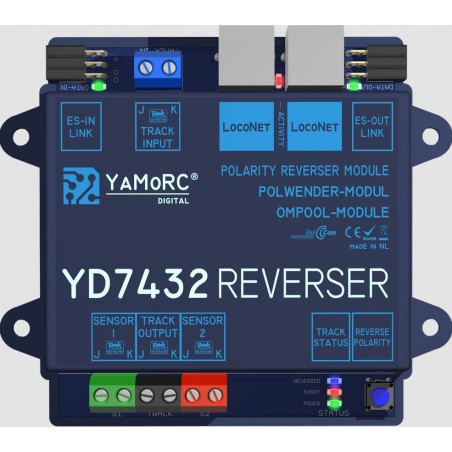

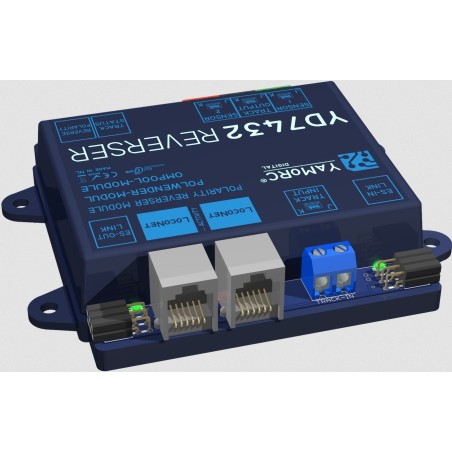

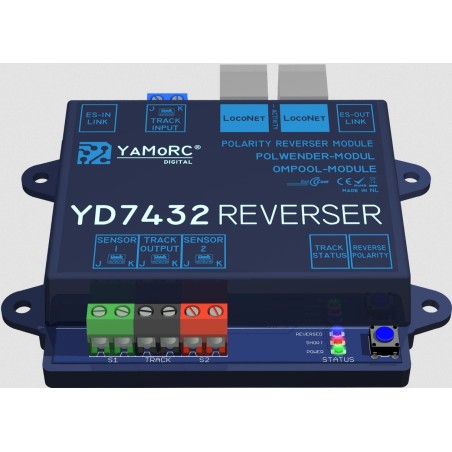

Polarity reverser. YAMORC YD7432

The YaMoRC solution for practically all polarity reversing tasks.

YD7432 features

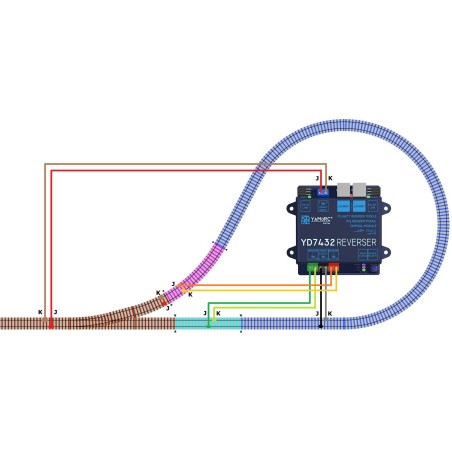

• 2-sensor short-circuit free operation.
• Alternative short-circuit detection mode
• Follow polarity with external (LocoNet) occupation feedback
• Follow polarity with turnout at entry
  • via LocoNet
  • via DCC
• Set turnout at exit
• 100% solid-state, no relays
• RailCom Block-, Address and Rail-Direction Report
• LocoNet occupation of S1, Track and S2 feedback, as well as short circuit status and track-polarity
• ES-Link occupation of S1, Track and S2 feedback, as well as short circuit status and track-polarity
• ES-Link configuration
• Firmware updatable

Current Ratings

• 2A - Continuous Operation
• 2.5–2.75A Short Circuit Detection threshold (for reversing as well as short circuit shutdown)
• 3.5A - Maximum Current during maximum 5 seconds (Command Station/Booster should switch off in this time)
