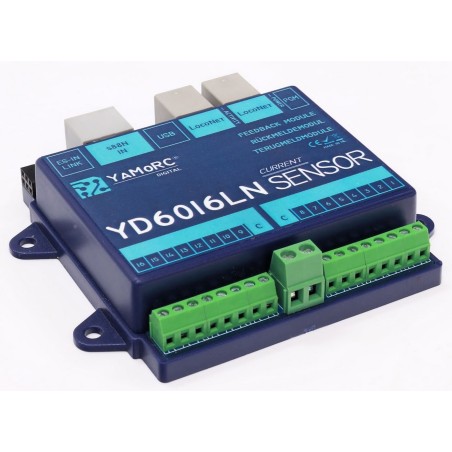

Feedback module, Loconet. YAMORC YD6016LN-CS

The standard current-sensing feedback module with LocoNet Interface.

Features Yamorc YD6016LN-CS

• 16 current-sensing detectors, arranged in two independent blocks of 8, each with their own common
• 2 A continuous current per detector; 8 A total combined over the 16 detectors on the whole module
• 5 A short-duration overload (100 ms) capability per detector
• 1–1.5 mA current sensitivity
• Capacitive input filter on every input, to suppress noise on long cables and track sections
• Configurable on- and off-delay for each input for optimal de-bouncing in case of non-optimal wheel-to-track contact
• Each input individually configurable for various actions such as feedback, turnout toggle, turnout throw, turnout close
• Each input individually configurable for feedback or turnout address

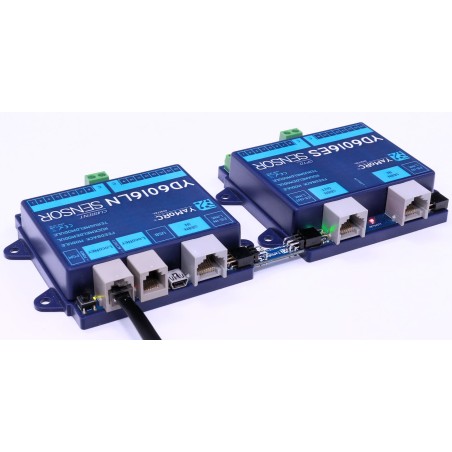

• ES-IN-Link for direct connection of up to 5 additional YD6016ES modules (effectively creating a 96-input LocoNet module)
• ES-IN-Link connection to other ES-Link enabled modules for module configuration
• ES-IN-Link connection to YD9101 for web-based configuration
• USB connection with one virtual COM port for the YD.Command** protocol
• Firmware updatable over USB
• Power supply directly from LocoNet-T or LocoNet-B (or USB for easy configuration and updating on a PC)
