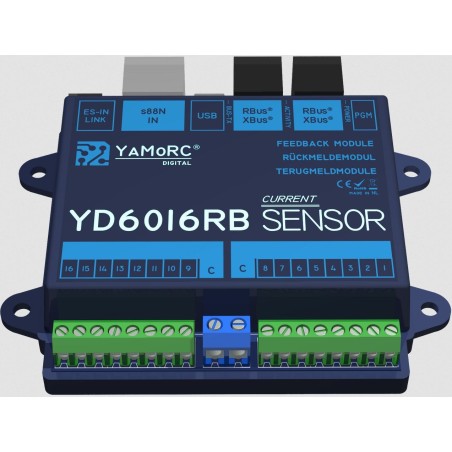

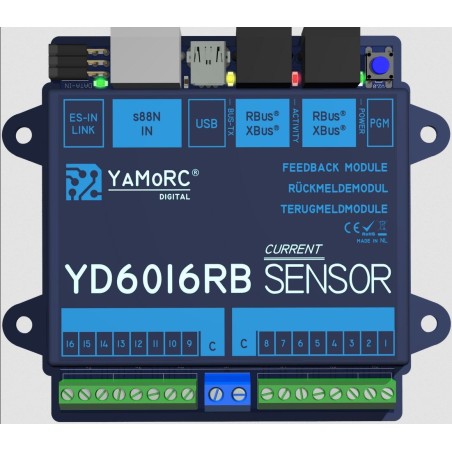

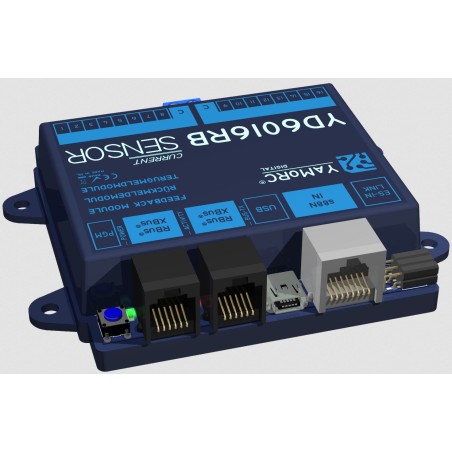

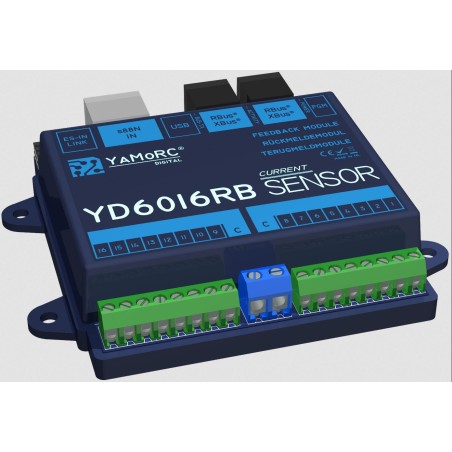

Feedback module, R-Bus (S88). YAMORC YD6016RB-CS

Our standard current-sensing feedback module with RBus / XBus Interface

Features Yamorc YD6016RB-CS

• 16 current-sensing detectors, arranged in two independent blocks of 8, each with their own common
• 2 A continuous current per detector; 8 A total combined over the 16 detectors on the whole module
• 5 A short-duration overload (100 ms) capability per detector
• 1 mA current sensitivity
• Capacitive input filter on every input, to suppress noise on long cables and track sections
• Configurable on- and off-delay for each input for optimal de-bouncing in case of non-optimal wheel-to-track contact
• Each input individually configurable for various actions such as feedback, turnout toggle, turnout throw, turnout close
• Each input individually configurable for turnout address
• ES-IN-Link for direct connection of up to 4 additional YD6016ES modules (effectively creating an 80-input RBus module)
• ES-IN-Link connection to other ES-Link enabled modules for module configuration
• ES-IN-Link connection to YD9101 for web-based configuration
• USB connection with one virtual COM port for the YD.Command** protocol
• Firmware updatable over USB
• Power supply directly from RBus / XBus (or USB for easy configuration and updating on a PC)
• Experimental: XpressNet feedback reporting. This enables more than 160 feedbacks on the white z21® command stations.
