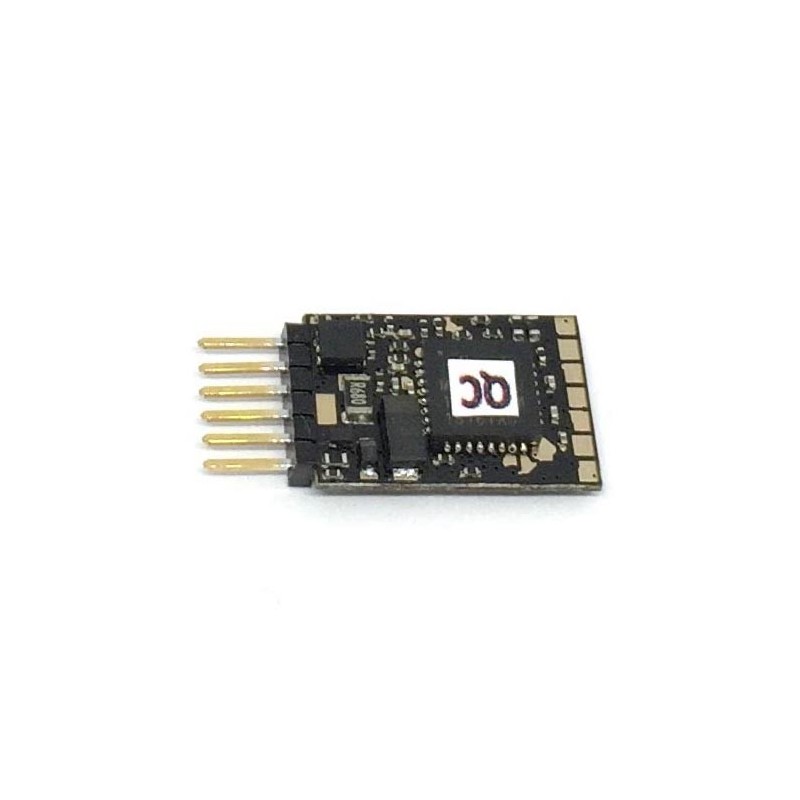

Decoder Lokommander II Micro. NEM 651. Train-O-Matic 02010220

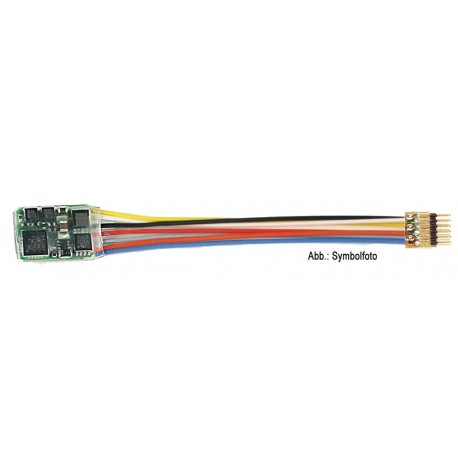

Lokommander II Micro decoder with NEM 651 connector (6 pins).
It features 4 auxiliary outputs and an integrated SUSI interface (soldering PADs).
Data sheet
- Marca
- Train-O-Matic
- Reference
- 02010220
- System
- DCC
- Size
- 14.0 x 9.0 x 3.3 mm
Description
Lokommander II Micro decoder with NEM 651 connector (6 pins).
It features 4 auxiliary outputs and an integrated SUSI interface (soldering PADs).
Features of the Lokommander II Micro decoders
- DCC decoder according to NMRA standards.
- Up to 1000 mA maximum motor current
- Load compensation system
- Compatible with ABC and Railcom
- Shuttle trains
- Supports up to 200mA per output (400mA maximum load across all function outputs)
- Protection against short circuits and overloads
- Outputs for SPP (Smart Power Pack)
- Compatible with digital couplers
- Input voltage between 4 and 24 volts
Railway Modelling - Digital - Decoders - Locomotive decoders - 6 pins
