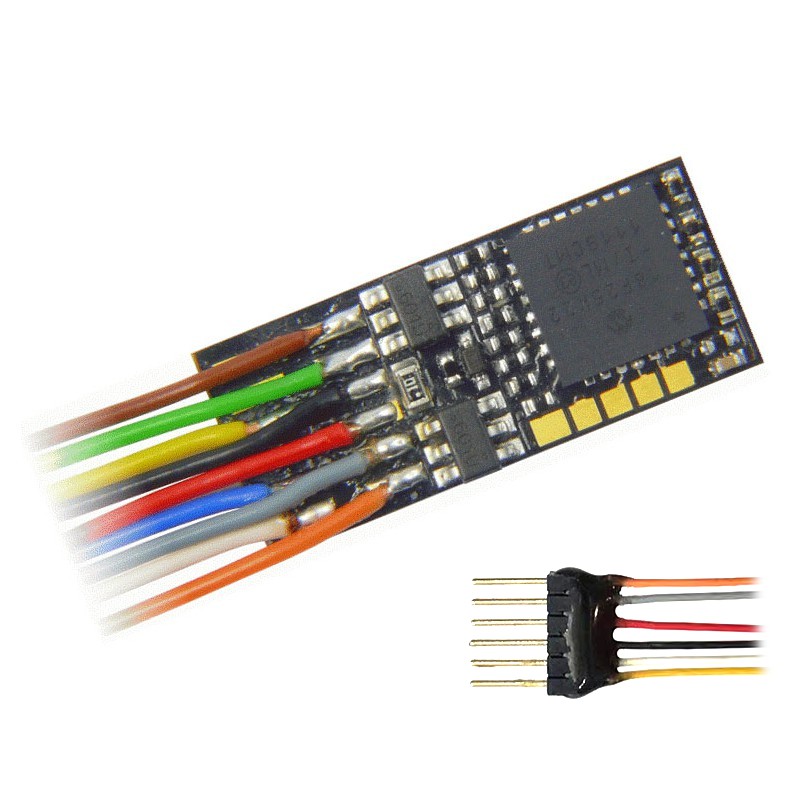

Small decoder, 6-pins. ZIMO MX623F
Be the first to commentSmall decoder, 6-pins plug on wires (NEM651).
Characteristics:
- Motor output of 0.8A, although it supports puntual peaks of 1.5A.
- Six outputs for functions (4-power and 2-logical).
- Suitable for servo control.
- For DCC and MM systems (multiprotocol)
- Railcom
- Dimensions of 20 x 8,5 x 3,5 mm
Marca ZIMO
Reference MX623F
New
Small decoder, 6-pins plug on wires (NEM651).
Characteristics:
- Motor output of 0.8A, although it supports puntual peaks of 1.5A.
- Six outputs for functions (4-power and 2-logical).
- Suitable for servo control.
- For DCC and MM systems (multiprotocol)
- Railcom
- Dimensions of 20 x 8,5 x 3,5 mm
Railway Modelling - Digital - Decoders - Locomotive decoders - 6 pins
