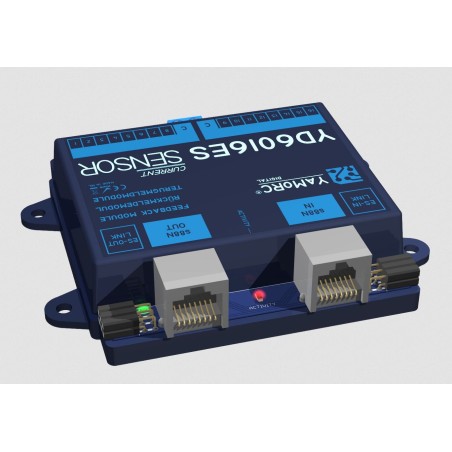

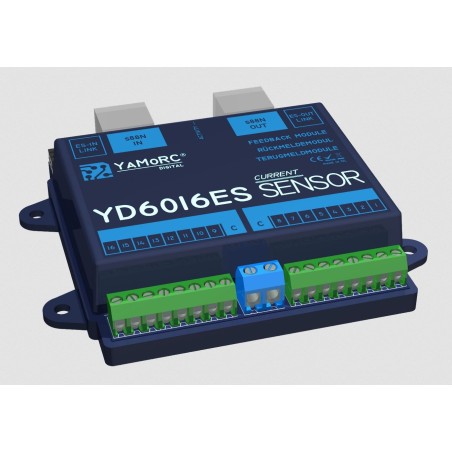

Feedback module, s88N. YAMORC YD6016ES-CS

Our classic s88N feedback module with current sensing inputs.

Features Yamorc YD6016ES-CS

• 16 current-sensing detectors, arranged in two independent blocks of 8, each with their own common
• 2 A continuous current per detector; 8 A total combined over the 16 detectors on the whole module
• 5 A short-duration overload (100 ms) capability per detector
• 1–1.5 mA current sensitivity
• Capacitive input filter on every input, to suppress noise on long cables and track sections
• Configurable on- and off-delay for each input for optimal de-bouncing in case of non-optimal wheel-to-track contact
• ES-OUT-Link for direct connection to an ES-Link master
• ES-IN-Link connection to other ES-Link enabled modules for module configuration
• Standard s88N connections via RJ45 connectors and ethernet patch cables
• Firmware updatable and settings configurable via ES-Link
• Power supply directly from ES-Link or the s88 bus
