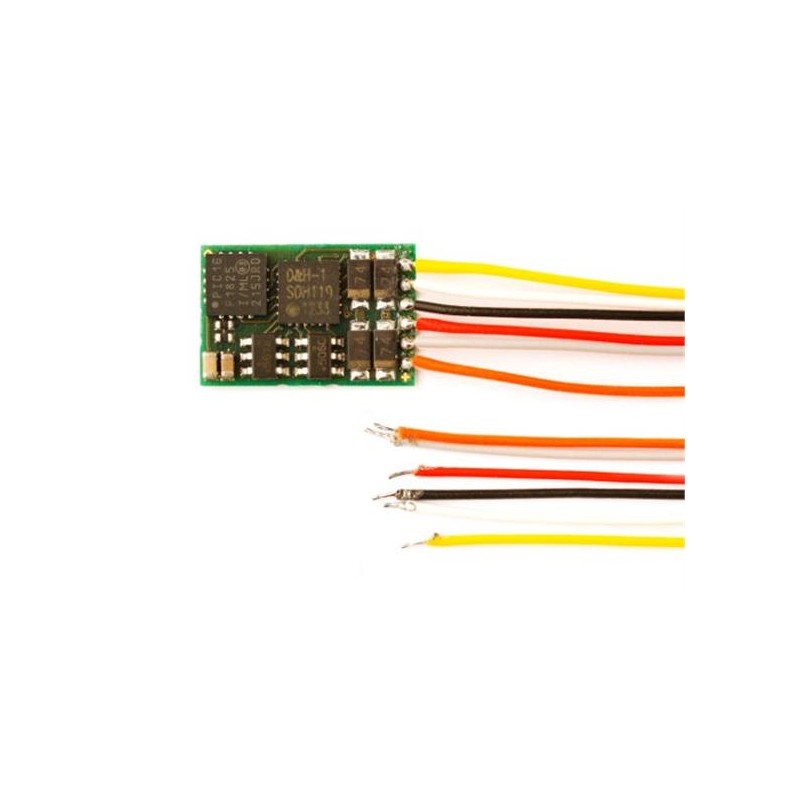

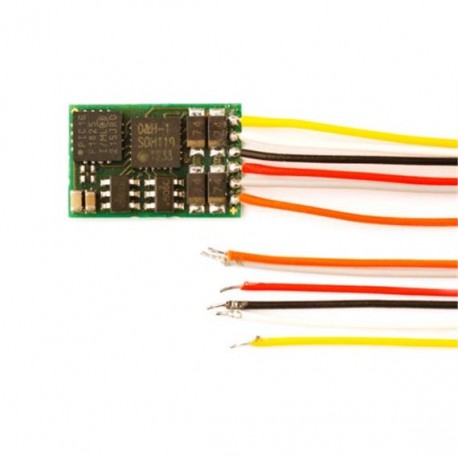

Decoder, with cable, 1.0A. DOEHLER HAAS DH10C-3
  • Out-of-Stock
Decoder, with cable, 1.0A. DH10C-3
search

Decoder, with cable, 1.0A. DOEHLER HAAS DH10C-3

Decoder with cable, 1.0A. Multisystem (SX1, SX2, DCC, MM, DC). With SUSI and Railcom interface. 4 output functions (2 x 150 mA for lights and 2 x 300 mA for auxiliary functions).

Discontinued Product

This product has been discontinued and is unlikely to be available again. Please view similar products.

Reference DH10C-3

Data sheet

Size
12,7 x 8,9 x 1,4 mm
New


Decoder with cable, 1.0A. Multisystem (SX1, SX2, DCC, MM, DC). With SUSI and Railcom interface. 4 output functions (2 x 150 mA for lights and 2 x 300 mA for auxiliary functions).


Railway Modelling - Digital - Decoders - Locomotive decoders - Wire decoders

GPSR. Reglamento sobre seguridad general de los productos

Marca:
DOEHLER HAAS
Representante:
DÖHLER & HAASS Steuerungssysteme GmbH & Co. KG
País del representante:
Alemania
Dirección:
Am Moosfeld 3, 81829 München
Email:
info@doehler-haass.de

Consultas sobre este producto

C 13/05/2020
Question:

Hola, quería preguntar, en este decoder de 6 cables, donde conectaríamos el retorno común de las luces de la locomotora. Podría ser al Rail derecho positivo (cable rojo)?? Gracias.

Answer:

Hola Cesar,

Puedes sacarlo del rail, bien cable rojo o cable negro, aunque lo ideal sería tomarlo de ambos y filtrar el positivo mediante diodos (ten en cuenta que no hay rail positivo, ya que la polaridad cambia). La mayoría de decoders de D&H también tienen un retorno positivo en el PAD marcado como VS (ver manual).

Un cordial saludo.
