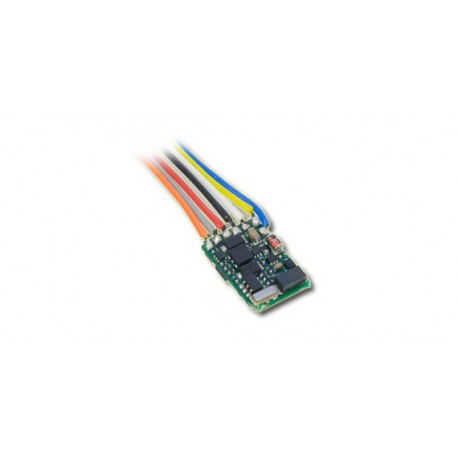

Silver Mini + Decoder, with wires. LENZ 10310-02
The Silver+ mini decoder is a less expensive variant of Gold decoders. More upmarket features (e.g. USP) have been omitted to facilitate the design of a low-cost, easy-to-install decoder. Except for USP, the Silver+ decoder has all other Gold decoder
Data sheet
- Marca
- LENZ
- Reference
- 10310-02
- Size
- 10,6 x 7,5 x 2,6 mm
Description
The Silver+ mini decoder is a less expensive variant of Gold decoders. More upmarket features (e.g. USP) have been omitted to facilitate the design of a low-cost, easy-to-install decoder. Except for USP, the Silver+ decoder has all other Gold decoder features, such as ABC and thermal overload and short-circuit protection. The 'mini' version of the Silver decoder allows the features and the price/performance ratio of a Silver available to small gauges as well. Silver mini+ (as well as Gold mini) is available with either cable for soldering and with a 6-pin 'direct' plug. Measures apx. 10.6 x 7.5 x 2.6 mm., supplied with 8cm long wires. 2 functions, 100mA each. 500mA (burst 800mA) Max. Motor drive S.U.S.I. Interface
Railway Modelling - Digital - Decoders - Locomotive decoders - Wire decoders
Buy it with
Consultas sobre este producto
| R26/03/2020 | Question: El Dcc silver mini de cables es apto para.una locomotora Fleischmann picolo7175 n? La locomotora es de la época III ó IV. Hay que soldar los cables Dcc 1- Rail , derecho, 2-Rail izquierdo, 3-borna derecha motor, 4-borna izquierda motor, 5-luz delantera, Y 6- luz trasera. La central es Z21 de Roco. Answer: Buenos días, Sí, este tipo de decoder le sirve para digitalizar locomotoras de escala N. Tenga cuidado de que todos los cables estén aislados en la máquina. Admás de lo que indica, necesitará dar retorno a las luces, preferiblemente conectando el común positivo (salida + o cable azul) o bien conectando a masa (rail). Como alternativa más económica y solvente, puede revisar este otro decoder: Saludos cordiales. |
