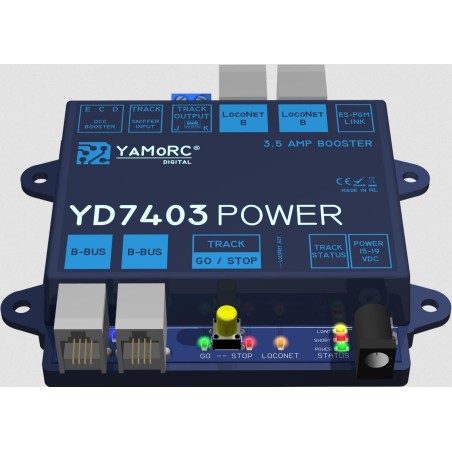

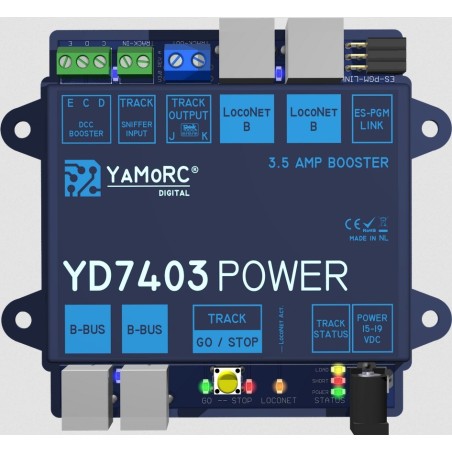

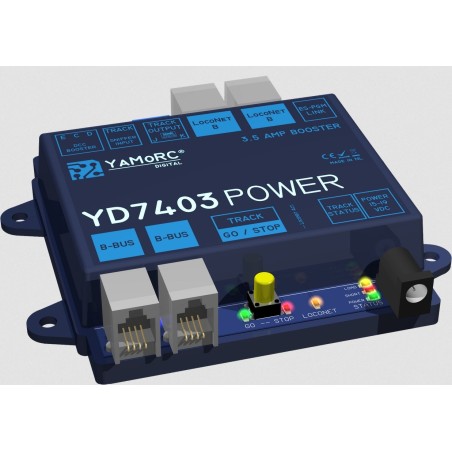

3.5A Power Booster. YAMORC YD7403

Universal 3.5 Amp booster.

Features of the booster

• Fully galvanically isolated on all, de facto industry standard inputs:
  • LocoNet – B
  • Roco B-BUS
  • DCC-CDE
  • Track Sniffer
• Automatic input selection.
• LED indication of currently active input.
• Local GO / STOP button to start/stop the booster, or reset in case of local short circuit.
• Follows input RailCom Cut-Out to its output.
• ES-PGM-LINK for easy configuration.

Power Specifications:

• Input: 15-19 V DC
• Output: 3.5 A peak current, 2.75 A continuous.
• Short circuit protected.
• Automatic short-report over LocoNet, CDE channel or BBus interface.
• H-Bridge Temperature measurement.
• Track-Current measurement.
• Input- and Track Voltage measurement.
