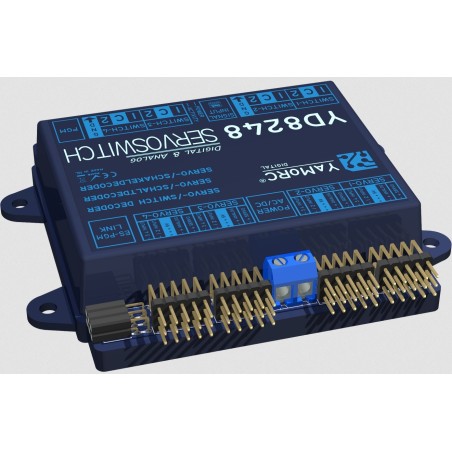

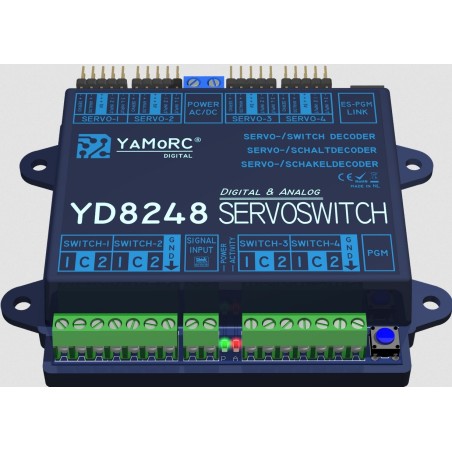

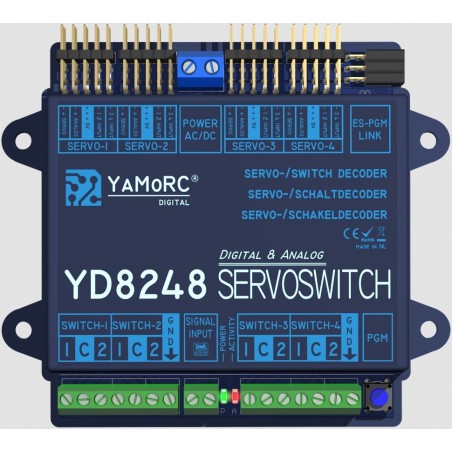

Servo decoders. YAMORC YD8248

The YaMoRC solution for operating RC-Servos.

Features of the YD8248

It presents the following features:

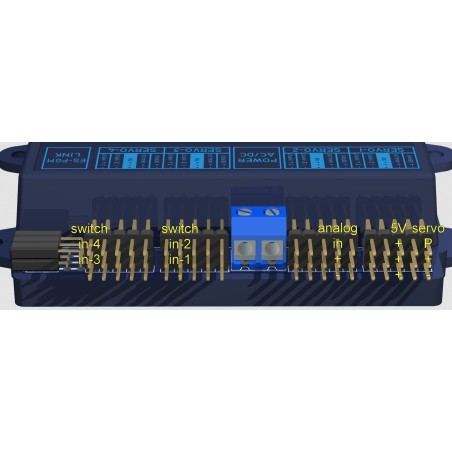

• 4 Servo connections in standard configuration, each servo has:
  • Analog input for position and/or configuration
  • 4 Digital Inputs for analog/conventional control of up to 4 positions (no need of a digital command station!!)
  • Selectable servo travel: 90 or 180 degrees. Supports 90° and 180° servos.
• Up to 4 Frog polarization relays (option Adapter YD8290) for the 4 Standard Servos
  • Frog polarization by 2 independent relays, both are off while servo moving to prevent short circuits on "difficult" turnouts.
• Up to 12 Servos in total by using option Adapter YD8291
• Eight independent 2.5A MOSFET auxiliary outputs
  • Selectable "common-voltage" between 5V or the rectified input voltage
  • Max 2.5A combined current
  • Complete aspect configuration like in our YD8116
• Very simple basic setup (base address), by pressing the programming button and switching the desired turnout address
• No complicated CV settings

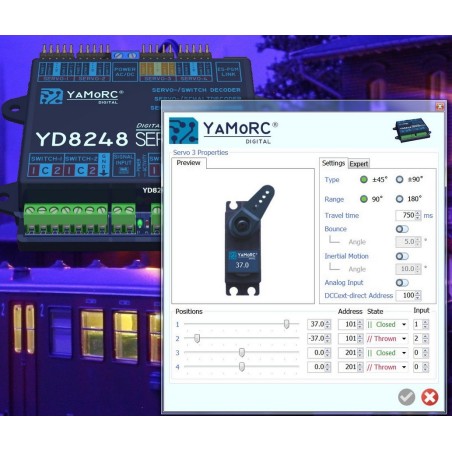

• Clear-text configuration based upon our new ES-Link technology
  • Using the classic Windows PC interface, the YD9100 config-USB-stick
  • As well as our YD6016LN/RB and ...
  • As well our YD7001 and YD7010 Command Stations can provide the configuration
  • All of the 8 outputs are freely configurable from 8x simple on-off to complex and elaborate signals with up to 8 LEDs/lamps
• Each defined device (Servo, Signal, Switch, Turnout) can have its own address
• Devices/Servos can be operated by the new DCCext standard or conventional turnout DCC commands (throw/close)
• Not suitable for solenoid point motors. For these motors, use our YD8008/YD8044
• The auxiliary outputs are also very suitable for motorized point motors. For two-wire motorized point motors (like Conrad, Hoffmann, Tillig, etc.), adapter YD6940 should be used.
