Description - Servo decoder set.

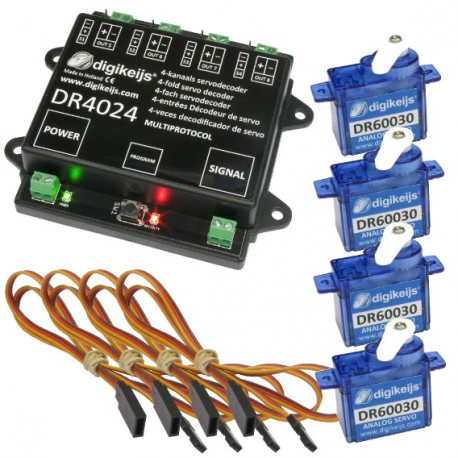

Complete servo decoder set, includes 1x servo decoder, 4x mini servo and 4x 50cm extension cable.

The DIGISERVO decoder is a fully programmable servo decoder. Each output also has an extra switching output to switch eg a light or decoupling track. Every output can also be calibrated with software which makes fitting servos a lot easier because they are set up after installation. The DIGISERVO decoder is the first servo decoder to work on the basis of function mapping. The decoder sees the ‘switching addresses’ as control functions for the various outputs. Depending on the mapping that has been set up, the decoder can use from 1 to 8 ‘switching addresses’.

Features
    - 4 servo outputs
    - 4 switching outputs
    - Power indicator
    - Activity indicator
    - Mass simulation (eg semaphores)
    - Servo calibration via the control unit
    - Detailed mapping function
    - Multiprotocol (DCC/MM)
    - Fully CS2-compatible
    - POM (Programming on Main)
    - Separate power and signal input


Technical features
    - Power consumption: 15mA
    - Maximum servo load: 500mA per servo output (2 Amps total)
    - Maximum switching load: 1 Amp per output (3 Amps total)

Customer Reviews

Luis .

2021-10-10

rating

Rapido servicio

Satisfecho



Questions about this product


Send us your question



JUAN L.

28/08/2021

Question:

Tengo la central digital Z21 de ROC O . ¿ Puedo incorporar este decoder para servos para que sea accionado a través de la central ? ¿ Hay algun manual de instrucciones donde se pueda ver ?

Answer:

Buenos días Juan Luis,


Sí, este sistema digital para control de servos es compatible con la Z21. En este enlace te dejo la página de Digikeijs en la que podrás descargar el manual del DR4024.


Un cordial saludo.
