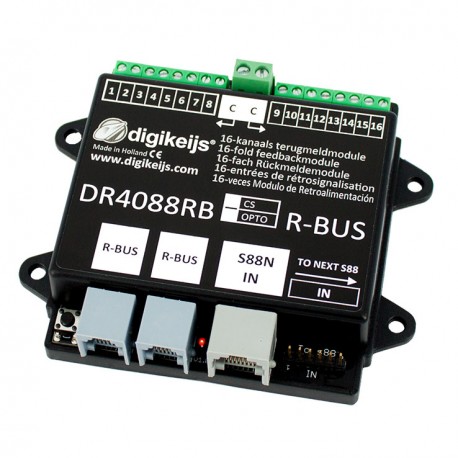

S88N feedback module, R-BUS. DIGIKEIJS DR4088RB-CS
This feedback module with 16 integrated track occupancy detectors is to monitor 16 sections with a current of up to 3 Amps. The module consists of two sections with eight indicator points each.
Marca DIGIKEIJS
Reference DR4088RB-CS
New
This feedback module with 16 integrated track occupancy detectors is to monitor 16 sections with a current of up to 3 Amps. The module consists of two sections with eight indicator points each.
The DR4088RB is a feedback module designed for the Roco™ MultiZentrale-Pro™, Z21™ (black), z21™ (white) and is compatible with the Roco™ 10787. The CS version has integrated current detection and can be connected directly to the rails. The DR4088RB-CS detects as little as 1mA current consumption on the rails and then sends a continuous occupied signal to the control unit. For 2-rail systems.
- 16 channels Power detection
- Activity indicator LED
- Rated up to 3 Amps (peak)
- Standard S88 and R-BUS connections
- Small solid housing by applying SMD techniques
Railway Modelling - Digital - Decoders - Others
Consultas sobre este producto
| B 26/01/2022 | Question: Existe la posibilidad de conectar a este retromódulo el automático universal uhlenbrock 68720. La pregunta viene a cuento de que tengo una z21 blanca, sin loconet y no he sabido encontrar con los módulos de Digikeijs la manera de hacer acantonamientos controlables desde la z21 blanca. ¿Me equivoqué de central y debo adquirir la DR5000? Mucho agradeceré vuestra ayuda. Un saludo Bonaventura Virgili Answer: Buenas tardes, Respecto al módulo de Uhlenbrock, al no trabajar esta marca no conozco bien su funcionamiento, pero es cierto que requiere una entrada Loconet que la z21 blanca no dispone y creo que no va a poder conectarse a ella. Para controlar cantones por retromódulos lo que realmente va a necesitar es un programa de PC para gestión de maquetas, dado que los retromódulos solo dan la información de ocupación, la gestión la realiza el software. Un cordial saludo. |
