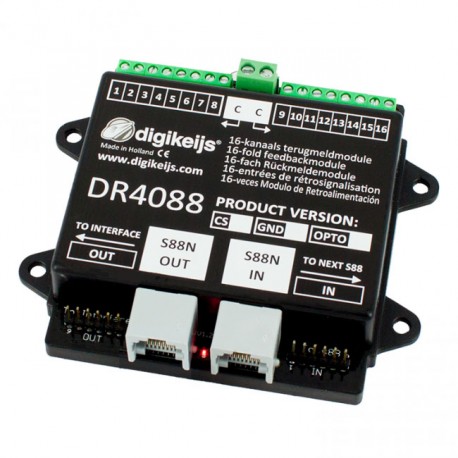

S88N feedback module. DIGIKEIJS DR4088CS
This feedback module with 16 integrated track occupancy detectors is to monitor 16 sections with a current of up to 3 Amps. The module consists of two sections with eight indicator points each. Each section has its own separate common. The network
Marca DIGIKEIJS
Reference DR4088CS
New
This feedback module with 16 integrated track occupancy detectors is to monitor 16 sections with a current of up to 3 Amps. The module consists of two sections with eight indicator points each. Each section has its own separate common. The network connections allow the modules to be placed up to 10 metres from each other. The special IB connector makes it possible to use an STP cable from the IB. For 2-rail systems.
- 16 channels Power detection
- Activity indicator LED
- Rated up to 3 Amps (peak)
- Standard S88 and STP connections (S88-N)
- Small solid housing by applying SMD techniques
Railway Modelling - Digital - Decoders - Others
