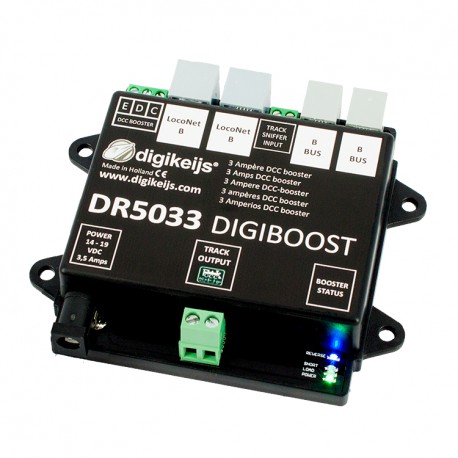

Booster 3A DCC, Multi-connection. DIGIKEIJS DR5033-NPS

The DR5033 is a 3-Ampere, H-bridge DCC booster with multiple connectivity options for all available digital control units. The DR5033 has a number of unique features. The booster can autonomously reverse the polarity (phase rotation) of its output if a connection error is detected on the rail that would otherwise cause a short circuit. The booster can be connected to different systems. The DR5033 has CDE (Lenz™), B-BUS™ (Roco™), L.NET-T (Intellibox™) and Railsniffer (PIKO™ Digi1, EcOS™ etc.) inputs.

The booster can be configured extremely flexibly to suit your situation using L.NET LNCV programming. When connected to L.NET, the DR5033 can optionally be switched on and off by the STOP-GO buttons on the control unit or via a (configurable) switching address. The booster then reports its status to the control unit via L.NET and the load (0-100%) and the temperature of the H-bridge can be read out in degrees C via LNCV. When con-nected to L.NET, the DR5033 can monitor a configurable switching address, which can be used to reverse the polarity of the booster. Furthermore, the booster can monitor 2x2 configurable feedback addresses (2x reverse polarity on, 2x reverse polarity off) which enables a short-circuit-free reverse loop circuit to be made.

No power supply included.
